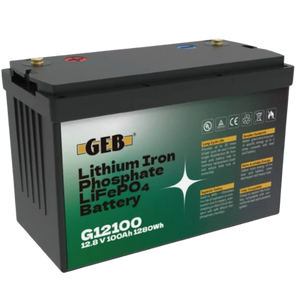

12.8v 100ah 1.28Kwh Lithium Battery
12.8v 100ah 1.28Kwh GEB Lithium Battery
Long Cycle Life: Provides up to 20 times longer cycle life and 5 times longer float/service life than lead acid, battery help to minimize replacement costs and reduce total cost of ownership.
Smaller Footprint: Better gravimetric/volumetric specific energy up to 3 times compare with lead acid battery.
More Available Energy: Deliver twice energy of the lead acid battery, when discharged with heavy load.
Superior Safety: Build-in BMS--Eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation with safe lithium iron phosphate chemistry.
Fully compatible: Design to replace VRLA battery, compatible with conventional lead acid powered system.
SPECIFICATIONS
Nominal Voltage 12.8
Nominal Capacity (Ah) 100
Total Energy (Wh) 1280
End Charge Voltage (V) 14.6
Discharge Cut-off Voltage (V) 10
Float Charge Voltage (V) 13.8
Standard Charge/Discharge Current (A) 50 CH / 50 DCH
Max. Charge/Discharge Current (A) 100 CH / 100 DCH
Peak Output Current (A) 120@500ms
Lithium Chemistry LiFePO4
Cycle Life 6000 @ 0.5C 80% DOD
Design Life 20 years
Scalability 4P or 4S
3 Years Warranty
