Ecco Solar 12V 100AH 1.28KWH Lithium-ion Battery L12100

Ecco Solar 12V 100AH 1.28KWH Lithium-ion Battery L12100

Description:

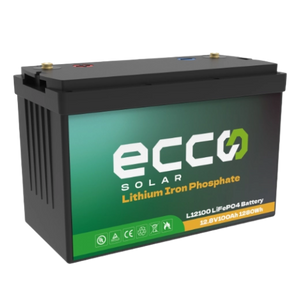

The Ecco 1.28kWh 12.8V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is a durable and high-efficiency energy storage solution designed for off-grid applications, solar systems, backup power, and deep-cycle energy needs. Featuring advanced LiFePO4 chemistry, this battery offers longer lifespan, superior power delivery, and enhanced safety compared to traditional lead-acid batteries.

Key Features:

• High-Capacity Energy Storage: 1.28kWh nominal energy output for reliable power supply.
• Longer Cycle Life:
  • Up to 5,000 cycles at 50% Depth of Discharge (DoD).
  • Lasts up to 20 times longer than traditional lead-acid batteries.
• Lightweight & Compact:
  • Weighs only 13kg, approximately 40% lighter than lead-acid alternatives.
  • Compact 330×172×220mm size for easy installation.
• High Discharge & Charge Efficiency:
  • 1.5C discharge rate for high power demand.
  • 97% charge efficiency for optimal energy usage.
• Safe & Reliable:
  • Built-in protection against overcharging, over-discharging, and short circuits.
  • LiFePO4 chemistry eliminates the risk of explosion or combustion.
• Scalable Power Expansion:
  • Supports up to 4 batteries in series or parallel for increased energy capacity.
• Rugged Durability:
  • IP65-rated enclosure protects against dust and water.

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Total Energy Storage: 1.28kWh
• Cycle Life: 5,000 cycles @ 50% DoD (35°C)
• Self-Discharge: Minimal over long periods
• Efficiency: 97% charge efficiency
• Standard Discharge Cut-Off Voltage: 10.8V
• Recommended Charging Voltage: 14.2V
• Recommended Charging Current: 50A
• Max Continuous Discharging Current: 100A
• Peak Discharging Current: 150A
• IP Rating: IP65
• Dimensions: 330mm x 172mm x 220mm
• Weight: Approx. 13kg

What’s in the Box?

• 1 x Ecco 1.28kWh 12.8V 100Ah LiFePO4 Battery
• Battery Cables & Mounting Accessories

Storage & Maintenance Recommendations:

• Storage: Maintain 50% charge if left idle for extended periods. Recharge every three months to maintain battery health.
• Operating Environment: Store in a dry, well-ventilated location at -20°C to 55°C, with 5% to 85% relative humidity. Keep away from corrosive substances, fire, and heat sources.

Warranty Duration: 3 Years
